WSPC Flooring by Elefloor
Sliced hardwood veneer on a waterproof rigid core — manufactured for distribution-scale volume.
Genuine wood surface at a landed cost that competes with premium printed-film SPC. Your buyers see real wood grain; your margin stays protected by SPC economics.
What WSPC Flooring Is — and Where It Sits in Your Catalog
WSPC stands for wood stone plastic composite. It's the entry tier of our wood veneer SPC flooring range: a sliced hardwood veneer face — 0.3mm to 0.5mm thick — bonded with PUR hot-melt adhesive onto a standard 4mm–6mm SPC rigid core.
The plank looks and feels like real hardwood. The core behaves like any SPC product you already know how to sell: waterproof, dimensionally stable, click-lock installation, no acclimation period.
The Commercial Logic
Standard printed-film SPC has become a commodity in most markets — margins are thin, differentiation is difficult, and your buyers are shopping on price alone. WSPC flooring gives you a step up: a genuine wood surface that justifies a higher retail price point, without the cost structure or risk profile of engineered hardwood.
You're selling real wood at SPC economics. That's the positioning gap this product fills.
Where WSPC Sits in the Range
Compared to our sibling products, WSPC is the volume play — lower veneer cost per square meter, faster production throughput, and a landed price that lets you compete in channels where engineered hardwood is too expensive but printed SPC is too commoditized.
100% Waterproof Core
SPC rigid core — no swelling, no warping. Suitable for kitchens, bathrooms, and commercial wet areas.
Real Wood Surface
Genuine sliced hardwood veneer — not a printed film. Authentic grain, texture, and warmth that buyers can see and feel.
Click-Lock Install
Unilin or Valinge-type CNC-milled click system. No acclimation period. Familiar installation for any flooring contractor.
SPC Economics
Landed cost that competes with premium printed-film SPC — not engineered hardwood. Margin-protective positioning for distributors.
Technical Specifications
Standard production values for WSPC flooring. Exact parameters may vary by configuration — contact us for detailed product data sheets.
WSPC Flooring — Full Specification Table
| Parameter | Specification |
|---|---|
| Total plank thickness | 5mm – 7mm (typical: 6mm) |
| SPC core thickness | 4mm – 5.5mm rigid core |
| Wood veneer face | 0.3mm – 0.5mm sliced hardwood |
| Veneer bonding | PUR (polyurethane reactive) hot-melt adhesive |
| Plank dimensions | 1220 × 183mm (standard); 1500 × 200mm on ODM |
| Click-lock system | Unilin-type or Valinge-type, CNC-milled |
| Attached underlayment | IXPE 1.0mm–1.5mm (optional, pre-attached) |
| Wood species | Oak, walnut, ash, hickory (standard); maple, teak, acacia on ODM |
| Surface finish | UV lacquer (matte/semi-gloss), natural oil, brushed |
| Waterproof rating | 100% waterproof core; 24-hr edge immersion <0.1mm displacement |
| Dimensional stability | EN 434 compliant; ≤0.1% length, ≤0.15% width change |
| Fire rating | Bfl-s1 (EN 13501-1) |
| Peel strength | ≥2.0 N/mm (production average: 2.8 N/mm) |
| VOC compliance | CARB2, FloorScore, E1 / E0 available |
| Wear layer | N/A (veneer face; finish coat protects surface) |
| Indentation resistance | EN 433 ≤0.1mm residual |
| Slip resistance | R9 / R10 (DIN 51130; finish-dependent) |
| Thermal resistance | 0.05–0.07 m²K/W (UFH compatible) |
| Acoustic (IIC / STC) | IIC 50 / STC 52 (with IXPE underlayment) |
| MOQ | 500 m² (standard SKU); 2,000 m² ODM |
| Lead time | 25–35 days (stock SKU); 45–60 days ODM |

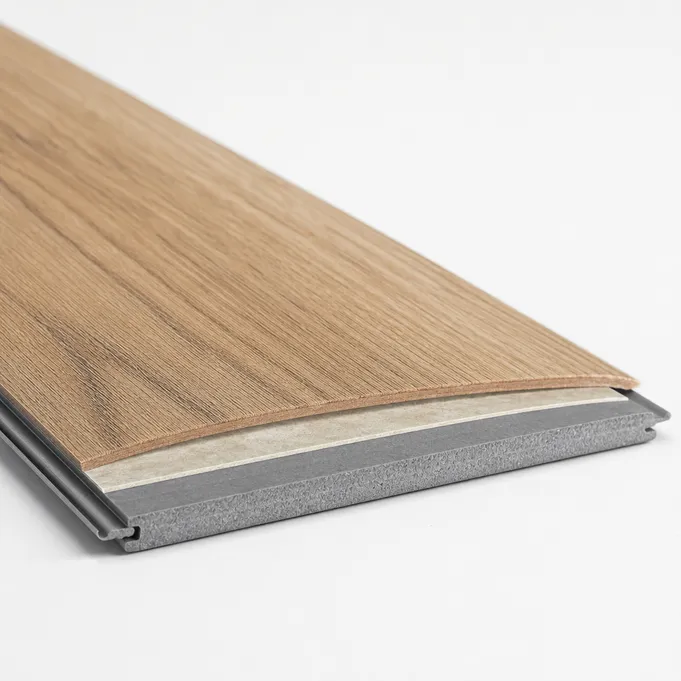

WSPC Plank — Layer Construction
Certifications & Compliance
Full test reports and certificates available on request. Request documentation →
Manufacturing Process
WSPC flooring combines two mature production lines — SPC extrusion and hardwood veneer processing — into a single precision lamination step. Understanding the process helps buyers evaluate quality claims and audit suppliers.
SPC Core Extrusion
Limestone powder, PVC resin, and stabilisers are calendered into rigid core boards at controlled temperature and pressure. Density target: 1.9–2.1 g/cm³.
Veneer Slicing & Grading
Hardwood logs are rotary- or flat-sliced to 0.3–0.5mm sheets. Sheets are graded for knot frequency, colour consistency, and moisture content (target: 8–10%).
PUR Lamination
Polyurethane reactive hot-melt adhesive is applied to the SPC core surface. Veneer is pressed under heat and pressure. Bond cures to ≥2.0 N/mm peel strength.
Surface Finishing
UV lacquer (matte or semi-gloss), natural oil, or brushed finish is applied in multiple coats. Wire-brushing and hand-scraping textures are added at this stage.
CNC Profiling & QC
Planks are CNC-milled to final dimensions and click-lock profile. Each board passes flatness, peel strength, and dimensional checks before packaging.
Factory Audit & Third-Party QC
We support pre-shipment inspections, factory audits, and third-party lab testing (SGS, Intertek, BV) for all WSPC orders. Request an audit arrangement →

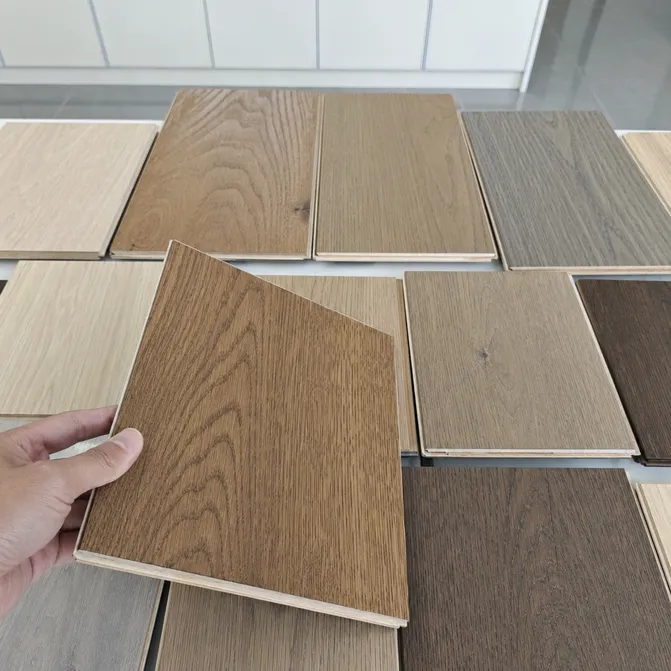

Real Wood Veneer vs. Printed Film
The core question buyers ask: is the premium over printed-film SPC justified? Here's an honest side-by-side so you can position the product accurately to your customers.
| Attribute | WSPC — Real Veneer | Standard SPC — Printed Film |
|---|---|---|
| Surface material | Genuine sliced hardwood | PVC film with printed pattern |
| Grain authenticity | Natural, unique per plank | Repeating print pattern |
| Tactile texture | Real wood feel | Embossed simulation |
| Refinishability | Light sanding possible (0.5mm+) | Not refinishable |
| Waterproof core | 100% SPC core | 100% SPC core |
| Installation method | Click-lock float | Click-lock float |
| Landed cost (relative) | +15–30% vs. printed SPC | Baseline |
| Retail price positioning | Premium / luxury segment | Mid / value segment |
| Margin opportunity | Higher retail delta | Compressed by competition |
| VOC / formaldehyde risk | CARB2 / E0 available | CARB2 available |
When printed-film SPC is the right call
WSPC is not always the better product for every project. High-traffic commercial installations where surface replacement is expected, or price-sensitive residential projects, may be better served by a quality printed-film SPC. We supply both — talk to us about the right fit for your channel.
Applications & Market Fit
WSPC flooring occupies the gap between engineered hardwood and premium printed-film SPC — a position that opens specific channels and project types where neither alternative performs as well.
Premium Residential New Build
Developers and custom builders spec WSPC where buyers expect real wood aesthetics but the project budget or timeline rules out solid or engineered hardwood. The waterproof core also removes the subfloor moisture risk that delays hardwood installs.
Renovation & Remodel
Float-over installation means WSPC goes down over existing subfloors without glue or nails. Ideal for occupied renovations where disruption must be minimised and a genuine wood surface is part of the design brief.
Boutique Hospitality
Hotel rooms, serviced apartments, and short-stay rentals benefit from the combination of real wood warmth and waterproof durability. Guests perceive quality; operators get a floor that handles spills and cleaning without warping.
Retail & Showroom Fit-Out
Fashion, furniture, and lifestyle retail spaces use WSPC to create a premium in-store environment. The natural grain variation reads as authentic on camera and in person — important for brands where the floor is part of the visual identity.
Wet-Adjacent Spaces
Kitchens, laundry rooms, and bathrooms adjacent to living areas where design continuity matters. The SPC core handles moisture that would swell solid or engineered wood, while the veneer surface maintains the look of a unified hardwood floor throughout the home.
Who Buys WSPC
- Flooring distributors adding a premium tier above their existing SPC range without moving into full engineered hardwood logistics.
- Importers & wholesalers in markets where engineered hardwood carries high tariffs or where moisture conditions make solid wood impractical.
- Retail chains building a private-label premium line that differentiates on surface authenticity rather than competing on price alone.
- Interior designers & fit-out contractors sourcing direct for high-specification residential and hospitality projects.
- Property developers differentiating show-home and apartment finishes in competitive markets.
Key Export Markets
Private Label & OEM Available
All WSPC products are available under your own brand. We handle box printing, label design coordination, and documentation in your brand name. MOQ applies — contact us for private-label terms.
Standard Specifications
Reference dimensions and performance data for our standard WSPC range. Custom dimensions, veneer species, and finish options are available on request with applicable MOQs.
Product Specification Sheet
Certifications
CARB Phase 2
California Air Resources Board
CE Marking
EN 14041 — EU market
FloorScore
Indoor air quality certification
ISO 9001
Quality management system
REACH Compliant
Phthalate-free, EU chemicals regulation
E0 (on request)
Ultra-low formaldehyde — Japan / AU
Request Full Tech Sheet
Get the complete specification document, test reports, and installation guide in PDF format.
Download Tech SheetAvailable Veneer Species
How We Manufacture WSPC — and Why the Process Matters to Your Claim Rate
The parent category page covers our veneer bonding process in detail, but here's what's specific to WSPC production and why it affects your bottom line.

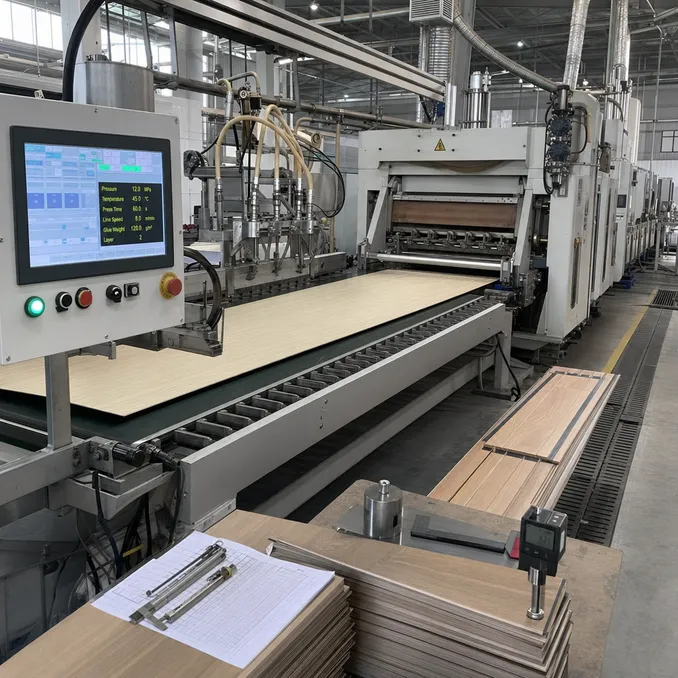

Thinner Veneer, Tighter Parameters
WSPC uses a thinner veneer face than our VSPC or hardwood SPC lines — 0.3mm to 0.5mm of sliced wood. Thinner veneer is more sensitive to lamination parameters. Too much press pressure and you crush the grain flat, losing the natural texture that justifies the premium. Too little and you get micro-voids in the adhesive layer that become delamination points six months into service.
We run our WSPC lamination line at lower pressure and slightly higher temperature than the thicker-veneer products — the PUR adhesive flows more completely into the thinner veneer's pore structure without compressing the wood fibers.
Peel-Strength Pull Test — Every Batch
Every WSPC production batch gets a peel-strength pull test. We're looking for 2.0 N/mm minimum; our running average is 2.8 N/mm. That number is your insurance policy against delamination claims.
We've seen competitor WSPC products come apart at 1.2–1.4 N/mm in our lab when buyers send us samples for comparison. The difference is almost always adhesive type — EVA hot-melt instead of PUR.
Post-Lamination Production Steps
-
1
UV Lacquer or Natural Oil Finish
4–6 coats applied to the veneer surface, each coat cured individually for maximum build integrity.
-
2
CNC Click-Lock Profiling
Milled with cutting parameters adjusted specifically for the veneer edge — the added wood layer changes material behavior at the tongue-and-groove interface, so we use different feed rates than standard SPC profiling.
-
3
Edge-Seal Coat
Applied after profiling to prevent moisture wicking into the exposed veneer edge at the plank perimeter.
What This Means for Your Business
The result: a product that survives rigorous testing and doesn't generate the delamination or edge-lifting claims that plague cheaper veneer SPC products in the market.
Market Segments Where WSPC Delivers Margin
Each application below is a market segment where WSPC flooring's price-to-perceived-value ratio creates a specific commercial opportunity for you.

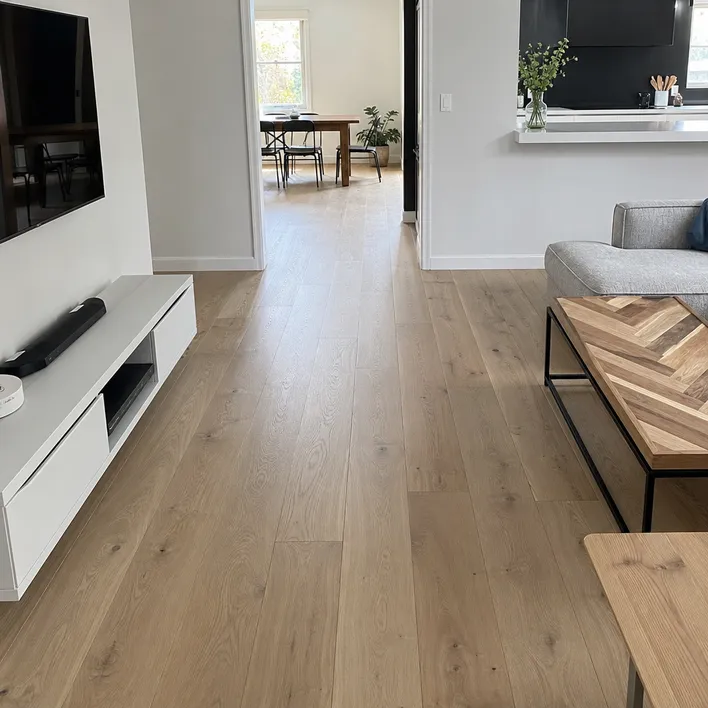

Mid-Range Residential Renovation
Homeowners upgrading from laminate or basic LVT want real wood floors but balk at engineered hardwood pricing. WSPC flooring gives them genuine wood grain at a price point 30–40% below engineered hardwood — and gives you a product with higher per-square-meter margin than printed-film SPC.
Renovation contractors order 50–200 sqm per project, and they reorder the same SKU across multiple jobs once they trust the product. Build your WSPC collection around 3–4 oak tones and a walnut option, and you cover 80% of residential renovation demand.

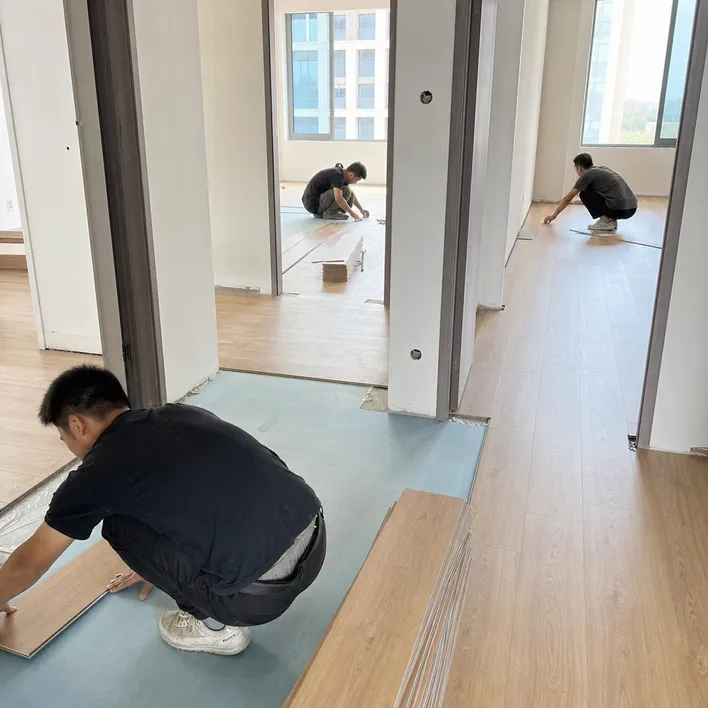

Multi-Family Property Development
Developers building 50–500 unit apartment complexes need a flooring product that photographs well for sales materials, installs fast with click-lock (no glue, no nails, no acclimation wait), and won't generate warranty claims from new owners. WSPC flooring checks all three at a lower installed cost than engineered hardwood.
Typical order pattern: 5,000–20,000 sqm per development phase, with reorders on subsequent phases if the product performs. We supply three ongoing multi-family programs in Southeast Asia running this exact pattern — same SKU, quarterly reorders, zero claims through handover.

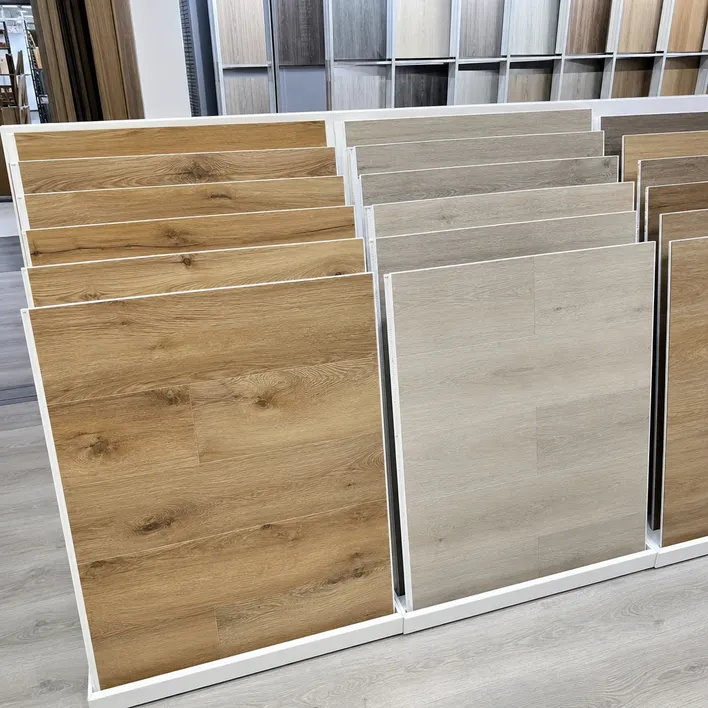

Retail Flooring Stores Expanding Beyond Commodity SPC
If your distribution channel includes retail flooring showrooms, WSPC is the product that moves them out of the price-war zone. A retail store displaying WSPC next to standard printed SPC creates an immediate upsell opportunity — the customer touches real wood grain and the conversation shifts from "what's your cheapest option" to "what species do you have."
Your retail accounts get a higher ticket per square meter; you get a higher wholesale margin per unit shipped.

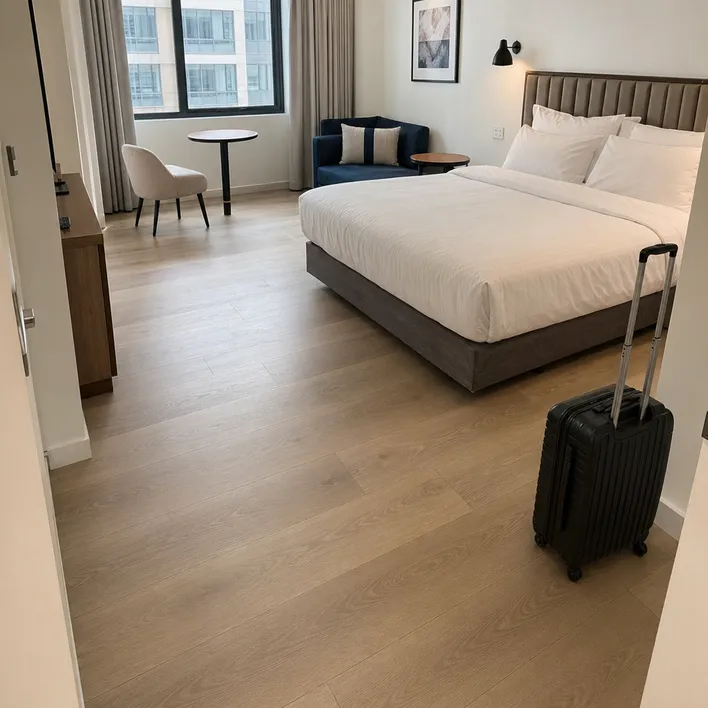

Hospitality Renovation on Budget
Boutique hotels and serviced apartments renovating 20–50 rooms at a time need a product that looks premium in listing photos, handles rolling luggage and housekeeping traffic, and stays within renovation budgets that can't absorb engineered hardwood pricing.
WSPC flooring in a matte oil finish reads as high-end in photographs while the SPC core handles the moisture and impact reality of hospitality use. Order volumes: 1,000–3,000 sqm per property, often with 2–3 species across room types and common areas.
Ready to match your segment?
Tell us your target segment and volume — we'll recommend species, finish, and pricing that fits your channel and margin requirements.
Customization Scope and Constraints
Every variable that affects your product positioning, retail price point, and import economics — and the hard limits that protect production quality.

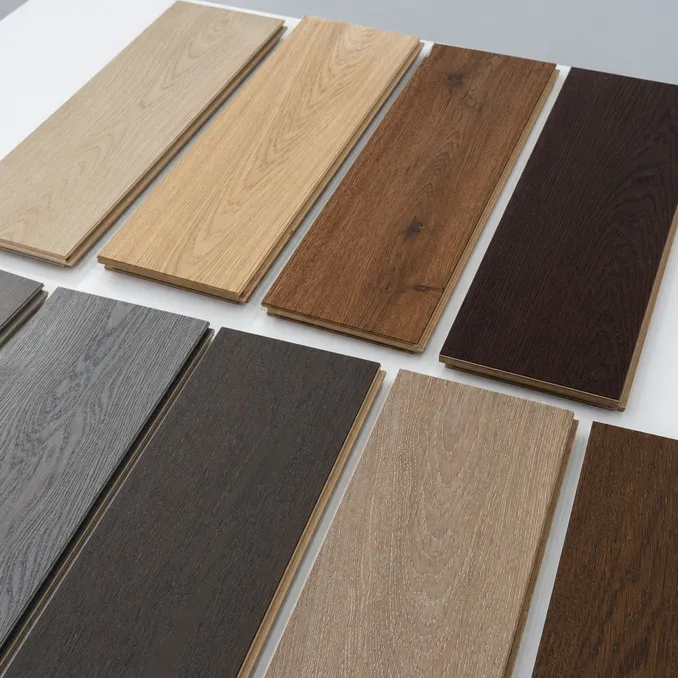

What You Can Customize
Wood Species
Oak, walnut, ash, hickory from stock veneer. Maple, teak, acacia, and other species sourced on ODM basis — add 7–10 days for species qualification and adhesion testing.
Veneer Grade
A-grade (clean, minimal character marks) or B-grade (natural knots and mineral streaks for a rustic aesthetic). Grade selection affects your price point and market positioning.
Surface Finish
UV lacquer in matte or semi-gloss, natural oil finish, brushed texture. Finish choice significantly changes retail positioning — matte oil reads European premium; semi-gloss UV suits North American retail expectations.
Plank Dimensions
Standard 1220 × 183mm. Wide-plank 1500 × 200mm available on ODM orders above 2,000 sqm.
Core Thickness
4mm, 4.5mm, or 5.5mm SPC core depending on your target total thickness and price point.
Attached Underlayment
IXPE 1.0mm or 1.5mm pre-attached, or no underlayment (buyer supplies separately).
Packaging
Private-label cartons with your branding, UPC/EAN barcodes, multilingual installation instructions, pallet configuration matched to your warehouse racking.
What Cannot Be Customized
Veneer Thickness Below 0.3mm
Not feasible — thinner slices tear during lamination and produce inconsistent coverage.
Veneer Thickness Above 0.5mm on WSPC
Moves into VSPC/hardwood SPC territory with different pricing and production parameters. If you need thicker veneer, we'll recommend the appropriate product line.
Color-Matched Veneer Across Unlimited Batches
Natural wood varies log to log. We manage batch consistency through same-log sourcing and color reference samples, but exact color matching across orders placed months apart requires advance veneer reservation planning.
MOQ Below 1,000 sqm per SKU
Standard minimum for stock species. Custom species or non-standard dimensions may require 2,000+ sqm depending on veneer sourcing constraints.
Ready to confirm your customization requirements?
Send your specs — we'll confirm feasibility, MOQ, and timeline within 48 hours.

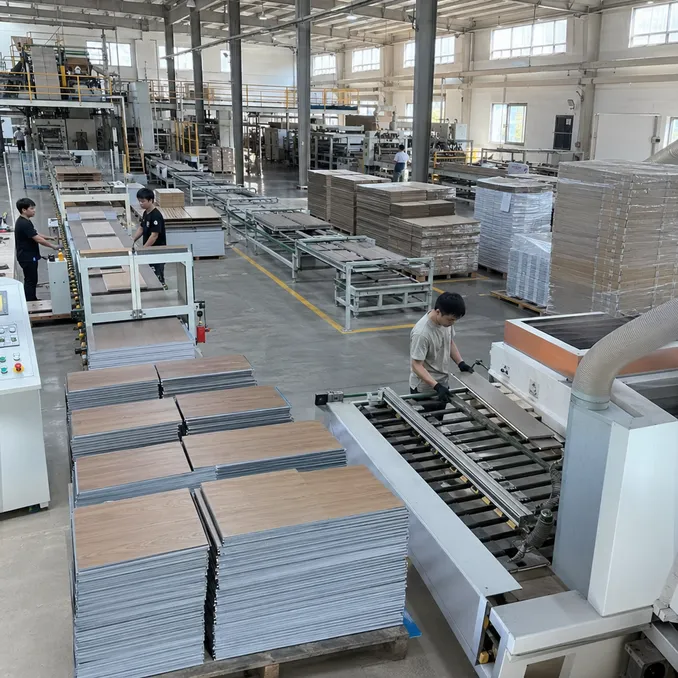

Landed Cost Advantage: Dual-Origin Production
You choose the production origin that optimizes your import economics. Same equipment, same formulations, same QC protocols — your certificate of origin is clean regardless of which plant ships.
Changzhou, China
CN OriginServes North America and Europe most efficiently via Shanghai. Optimal freight cost and delivery timeline for Atlantic and Pacific trade lanes.
Rayong, Thailand
TH OriginCloser to Oceania and Southeast Asian ports. For buyers importing into markets with anti-dumping duties on Chinese-origin flooring, Thailand origin can reduce your landed cost by 15–25% depending on the current duty schedule.
Same Production Standard, Both Plants
Both facilities run the complete WSPC production sequence — core extrusion, veneer lamination, finishing, profiling, and packaging. Origin routing is a logistics and duty decision, not a quality variable.
Anti-Dumping Duty Savings
For buyers importing into markets with anti-dumping duties on Chinese-origin flooring. We handle origin planning during the quoting stage — tell us your destination market and we route production accordingly.
Production & Logistics Parameters
Per-sqm Freight Cost Visibility
We provide exact loading plans during quoting so you can calculate per-square-meter freight cost before committing to an order.
How Origin Planning Works
-
1
Tell us your destination market during the quoting stage — country, port of entry, and any known duty classifications.
-
2
We evaluate the current duty schedule and transit time from both Changzhou and Rayong to your destination port.
-
3
We route production to the optimal facility and provide a loading plan with exact per-sqm freight cost before you commit.
-
4
Your certificate of origin is clean — both plants run the same formulations and QC protocols, so there is no quality trade-off in the routing decision.

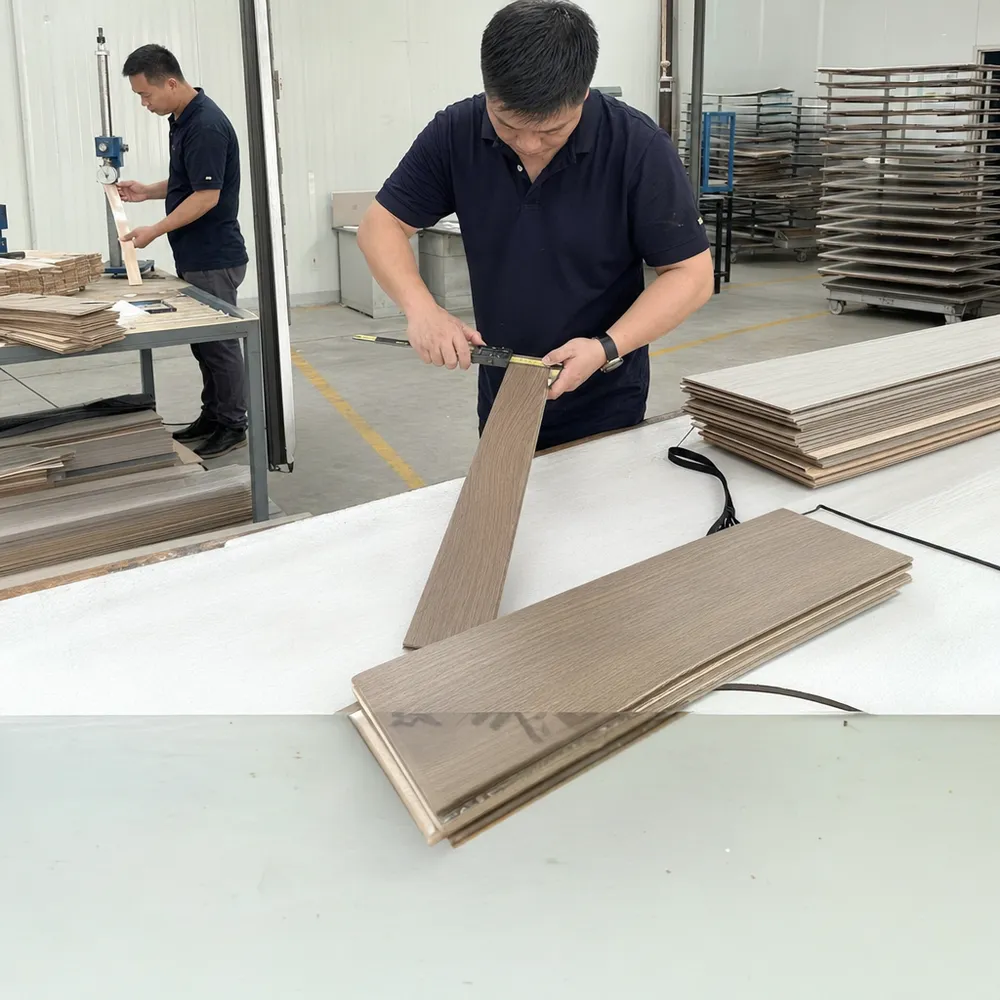

Quality Assurance Specific to WSPC Production
Our ISO 9001:2015 QC system applies across all production, but WSPC adds inspection points specific to thin-veneer products. Every batch moves through a defined gate sequence before it ships.
Incoming Veneer Inspection
Thickness consistency ±0.05mm, moisture content 8–10%, grain direction uniformity, surface defect grading.
B-grade veneer standard: Allows natural character marks but rejects splits, excessive mineral streaks, and color variation beyond the acceptable range for the specified SKU.
Lamination Peel Test
Tensile pull test on samples from every batch.
Thermal Cycling Verification
50 cycles between -10°C and 60°C on samples from each species/adhesive combination. Confirms bond integrity under temperature stress.
Critical for: Underfloor heating applications where thermal expansion cycles are frequent and bond failure creates warranty exposure.
Edge-Seal Verification
24-hour edge immersion test, measuring displacement with a dial gauge.
Standard SPC QC Gates
- Inline thickness monitoring ±0.1mm
- Core density checks
- Click-lock engagement testing
- Dimensional stability per EN 434
- 100% visual inspection before packing
Third-Party Inspection
SGS or Bureau Veritas third-party inspection available on request. Most of our North American buyers require pre-shipment third-party audits — we're set up to accommodate inspectors on short notice.
WSPC vs. Sibling Products: Choosing the Right Tier
If you're building a wood veneer SPC collection, here's how the three lines compare and where each fits in your catalog. All three run on the same production platform — your logistics, click-lock system, and installation training stay consistent across the range.
| Dimension | WSPC Flooring | VSPC Flooring | Hardwood SPC Flooring |
|---|---|---|---|
| Veneer thickness | 0.3–0.5mm sliced | 0.4–0.6mm rotary-cut/sliced | 0.5–0.6mm sawn-cut |
| Grain character | Clean, uniform | Pronounced, varied | Deep, refinishable |
| Market positioning | Entry-level real wood | Mid-tier premium | High-end, competes with engineered hardwood |
| Landed cost | Lowest in range | 10–15% above WSPC | 20–30% above WSPC |
| Best channel fit | Volume residential, multi-family, retail upsell | Design-focused retail, boutique commercial | Luxury residential, high-end hospitality |
| Refinishable | Yes (one light sand) | ||
| MOQ | 1,000 sqm/SKU | 1,000 sqm/SKU | 1,500 sqm/SKU |
WSPC Flooring
Entry-level real wood. Volume residential, multi-family, and retail upsell. Lowest landed cost in the range with clean, uniform grain character.
Buyers who need a real-wood story at a price point that moves volume
VSPC Flooring
Mid-tier premium. Design-focused retail and boutique commercial. Pronounced, varied grain character at a moderate 10–15% cost step-up over WSPC.
More visual depth and grain character for a design-focused market
Hardwood SPC Flooring
High-end premium tier. Luxury residential and high-end hospitality. Competes head-to-head with engineered hardwood on spec sheets. Refinishable surface. 20–30% above WSPC landed cost.
Competing directly with engineered hardwood on spec sheets
Build a Tiered Collection
Many of our distributors carry two or all three lines as a tiered collection — good/better/best positioning that lets their retail accounts upsell within the same brand. We produce all three on the same production platform, so your logistics, click-lock system, and installation training stay consistent across the range.
Frequently Asked Questions
Technical and commercial questions we hear from buyers evaluating WSPC for the first time — or switching from another supplier.
Is WSPC flooring suitable for underfloor heating installations?
Yes. The SPC core's dimensional stability under continuous heat is the primary technical advantage over engineered hardwood in radiant floor applications. We verify every WSPC species/adhesive combination through 50 thermal cycles (−10°C to 60°C) to confirm both core stability and veneer bond integrity.
Keep surface temperature below 28°C — standard recommendation for any floating floor over radiant heat. The PUR adhesive bond doesn't soften at these temperatures, unlike EVA-bonded products that can delaminate over heated subfloors within 12–18 months.
How does WSPC flooring compare to printed-film SPC with wood-look décor?
The surface is real sliced hardwood — you can see and feel actual wood grain, pores, and natural variation that no printed film replicates under close inspection.
For your business, the difference is margin: WSPC commands a retail premium over printed SPC because buyers can tell the difference by touch. Your landed cost is higher than printed SPC but lower than engineered hardwood, so the margin per square meter typically exceeds both categories.
The trade-off: natural wood veneer requires more careful packaging and has slightly higher incoming material rejection rates than synthetic décor film, which is reflected in the unit cost.
What causes delamination in wood veneer SPC products, and how do you prevent it?
Three root causes: wrong adhesive type (EVA instead of PUR), incorrect lamination parameters (temperature/pressure mismatch for the veneer thickness), or veneer moisture content too high at bonding.
We prevent all three through PUR hot-melt adhesive, press parameters calibrated per veneer thickness, incoming veneer moisture testing (target 8–10%), and batch peel-strength verification (minimum 2.0 N/mm, production average 2.8 N/mm).
If you're comparing WSPC suppliers, request their peel-strength test data and ask what adhesive system they use — these two answers predict field performance more reliably than any other specification.
Can I order WSPC flooring with custom wood species not in your standard range?
Yes, on an ODM basis. We source veneer from approved mills and can qualify new species — teak, maple, acacia, cherry, and others depending on availability. Custom species adds 7–10 days to the sample timeline because we run adhesion tests on every new species before committing to production. Different woods have different porosity and oil content, which affects PUR bond strength.
What is the typical lead time for a WSPC production order?
25–35 days from order confirmation for standard species and configurations. Variables that affect lead time: veneer species availability (custom species may add sourcing time), order size (larger orders need more line time), and current production schedule.
Sample lead time is within 7 days from design confirmation. We recommend placing sample orders 4–6 weeks before you need to commit to a production order — this gives you time to test with your downstream buyers and confirm the spec before scaling up.
How do you handle color consistency between WSPC production batches?
Natural wood varies from log to log — this is inherent to any real wood product. We manage it through same-log sourcing for linked orders, color reference samples maintained for each active SKU, and veneer inventory reservation for large ongoing programs.
For your first order, we send production samples for approval before full-run commitment. If your project requires tight batch-to-batch matching (e.g., a multi-phase development where units install side by side), flag this during quoting and we'll plan veneer procurement from a single log run.
Start With a Sample Order
Most buyers entering the WSPC category start with samples to test with their downstream market before committing to production volume. Tell us your target species, finish preference, and destination market — we'll produce samples within 7 days and include a detailed quote with landed cost estimates for both China and Thailand origin.
Already sourcing wood veneer SPC from another factory and evaluating alternatives? Send us a reference sample or spec sheet. We'll match it, quote both origins, and let you compare on quality and cost.
Include your target volume, species preference, and destination market for the most accurate pricing. Elefloor — SPC flooring manufacturer since 2012, dual production hubs in Changzhou, China and Rayong, Thailand.
